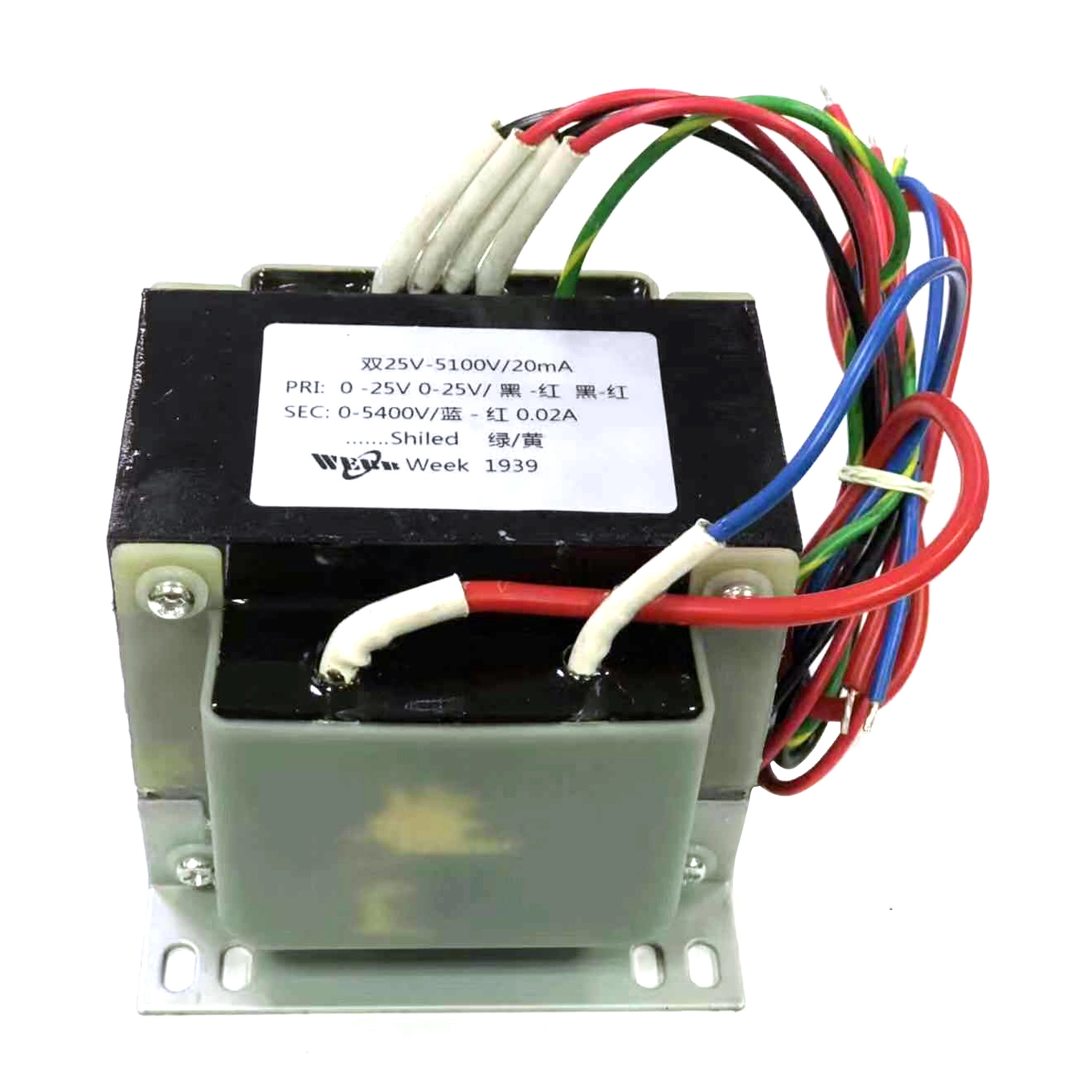

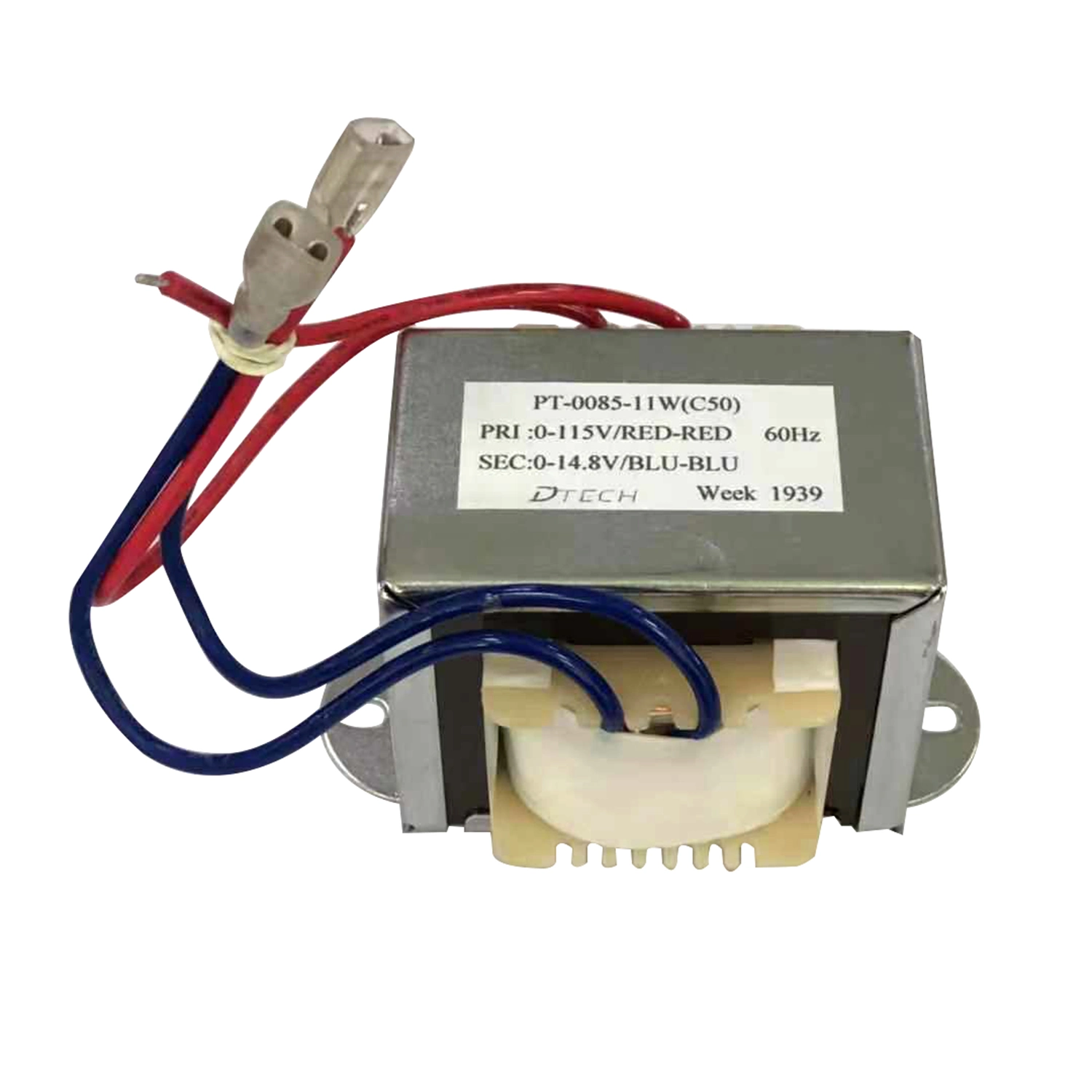

NFC Transformer provides both standard and custom designs with following features.
Key Specifications
Power Range: 10VA to 3000 VA
Size Range: EI-28 to EI-192
Phase: Single or 3Phase
Input/Output: Customized
Insulation: Primary to secondary 2.5kV, 1min, some parts up to 4kV, it desponds to the safety agency requirements.
Primary to safety ground 2.5kV, 1min
Secondary to safety ground 1.5kV, 1min
Toroidal Transformer Main Materials (IQC process)
All the material is inspected strictly with ISO9001:2008 quality program.
EI lamination: appearance inspection and core loss test.
Copper wire: pinhole test and coat of adhesion test
EI Transformer Testing Items
Transformer applications
Widely use in Medical, Industrial Equipment, servo motor, Building, Precision Machine Tool, Elevator Control, Test equipment, Auto Control System, Railway, fire system, Amplifier, UPS, Sola, Lighting, Communications and so on.
Certifications
Exhibition
Our advantages
We have professional design teams. And we have been supplying solutions for designing, sampling, engineering, producing custom-made transformers in difference using application for more than 27years. We understand how to optimize the product to cut down the cost according to different applications. We have factory both in Guangzhou, China and Taiwan. You can choose to Made in China or Made in Taiwan.
- 105/130/155/180 degree insulation systems are available.
- Design to meet UL/CSA/TUV/VDE/CE and other appointed safety agency requirements.
- Auto transformer and insulated transformer can be design according to requirements.
- 100/110/115/120/208/220/230/240/277/380/415V/440V or specified primaries are optional.
- Secondary voltage: 3.6V/6.3V12V/24V/36V/100V/110V/120V/200V/220V/240V/380V or customer specified.
- Terminations and mounting means can be customized.
- ROHS 2.0 Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU and Substance of very high concern (SVHC) under Regulation (EC) NO.1907/2006 of REACH are conformity.
Key Specifications
Power Range: 10VA to 3000 VA
Size Range: EI-28 to EI-192
Phase: Single or 3Phase
Input/Output: Customized
Insulation: Primary to secondary 2.5kV, 1min, some parts up to 4kV, it desponds to the safety agency requirements.
Primary to safety ground 2.5kV, 1min
Secondary to safety ground 1.5kV, 1min
| EI Transformer Sepecification | |||||||
| VA | Regulation | Temp. Rise | Core | Dimension(mm) | |||
| (Size) | (%) | (deg C) | (Size) | L | W | H | F/A×B |
| 12 | 18 | 60 | EI 48-18 | 50 | 34 | 44 | 61 |
| 15 | 18 | 60 | EI 48-20 | 50 | 36 | 44 | 61 |
| 18 | 18 | 60 | EI 48-24 | 50 | 40 | 44 | 61 |
| 20 | 18 | 60 | EI 48-30 | 50 | 46 | 44 | 61 |
| 25 | 16 | 60 | EI 57-20 | 59.5 | 44 | 50.5 | 70.5 |
| 30 | 15 | 60 | EI 57-24.5 | 59.5 | 48.5 | 50.5 | 70.5 |
| 35 | 13 | 60 | EI 57-30 | 59.5 | 54 | 50.5 | 70.5 |
| 40 | 12 | 60 | EI 57-35 | 59.5 | 59 | 50.5 | 70.5 |
| 44 | 12 | 60 | EI 66-24 | 68.5 | 52 | 58.5 | 81.5 |
| 55 | 11 | 60 | EI 66-30 | 68.5 | 58 | 58.5 | 81.5 |
| 60 | 10 | 60 | EI 66-36 | 68.5 | 64 | 58.5 | 81.5 |
| 65 | 9 | 60 | EI 66-40 | 68.5 | 68 | 58.5 | 81.5 |
| 70 | 8.5 | 60 | EI 66-45 | 68.5 | 71 | 58.5 | 81.5 |
| 80 | 8 | 60 | EI 76-32 | 78.5 | 62 | 68.5 | 90 |
| 100 | 8 | 60 | EI 76-38 | 78.5 | 68 | 68.5 | 90 |
| 120 | 7.8 | 60 | EI 76-45 | 78.5 | 75 | 68.5 | 90 |
| 135 | 7.5 | 60 | EI 76-50 | 78.5 | 80 | 68.5 | 90 |
| 140 | 7.5 | 60 | EI 86-38 | 86.2 | 72 | 72 | 71×63 |
| 145 | 7 | 60 | EI 86-42 | 86.2 | 76 | 72 | 71×67 |
| 155 | 6.8 | 60 | EI 86-45 | 86.2 | 79 | 72 | 71×70 |
| 175 | 6.5 | 60 | EI 86-50 | 86.2 | 84 | 72 | 71×75 |
| 155 (1) | 6.5 | 60 | EI 96-32 | 96 | 69 | 80.5 | 76×55 |
| 180 | 6.5 | 60 | EI 96-38 | 96 | 75 | 80.5 | 76×61 |
| 210 | 6.4 | 60 | EI 96-45 | 96 | 82 | 80.5 | 76×68 |
| 230 | 6.4 | 60 | EI 96-50 | 96 | 87 | 80.5 | 76×73 |
| 265 | 6.4 | 60 | EI 96-60 | 96 | 97 | 80.5 | 76×83 |
| 210 (1) | 5 | 65 | EI 105-34 | 105 | 73 | 91 | 76×52 |
| 255 | 5 | 65 | EI 105-40 | 105 | 79 | 91 | 76×58 |
| 285 | 4.8 | 65 | EI 105-50 | 105 | 89 | 91 | 76×68 |
| 320 | 4.8 | 65 | EI 105-55 | 105 | 94 | 91 | 76×73 |
| 240 | 4.6 | 65 | EI 105-60 | 105 | 99 | 91 | 76×78 |
| 375 | 4.6 | 65 | EI 105-65 | 105 | 104 | 91 | 76×81 |
| 360 | 4.6 | 65 | EI 114-45 | 114 | 89 | 97.5 | 95×75 |
| 400 | 4.6 | 65 | EI 114-50 | 114 | 94 | 97.5 | 95×80 |
| 440 | 4.5 | 65 | EI 114-55 | 114 | 99 | 97.5 | 95×85 |
| 480 | 4.5 | 65 | EI 114-60 | 114 | 104 | 97.5 | 95×90 |
| 520 | 4.5 | 65 | EI 114-65 | 114 | 109 | 97.5 | 95×95 |
| 530 | 4.4 | 70 | EI 133-50 | 136 | 115 | 114 | 125×86 |
| 580 | 4.4 | 70 | EI 133-55 | 136 | 128 | 114 | 125×91 |
| 630 | 4.4 | 70 | EI 133-60 | 136 | 125 | 144 | 125×96 |
| 680 | 4.3 | 70 | EI 133-65 | 136 | 129 | 144 | 125×101 |
| 730 | 4.3 | 70 | EI 133-70 | 136 | 135 | 144 | 125×106 |
| 780 | 4.3 | 70 | EI 133-75 | 136 | 141 | 144 | 125×111 |
| 830 | 4.2 | 70 | EI 133-80 | 136 | 144 | 144 | 125×116 |
| 870 | 4.2 | 70 | EI 133-85 | 136 | 151 | 144 | 125×122 |
| 925 | 4.2 | 70 | EI 133-90 | 136 | 154 | 144 | 125×127 |
| 975 | 4.2 | 70 | EI 133-95 | 136 | 159 | 144 | 125×132 |
| 1025 | 4.2 | 70 | EI 133-100 | 136 | 164 | 144 | 125×137 |
Toroidal Transformer Main Materials (IQC process)
All the material is inspected strictly with ISO9001:2008 quality program.
EI lamination: appearance inspection and core loss test.
Copper wire: pinhole test and coat of adhesion test
EI Transformer Process
- EI lamination has 0.35mm and 0.5mm thickness, material has Z11/H12/H14/H18/H50 for option.
- The insulation for coil has 0.075/0.125mm thickness polyester film, 0.18/0.25mm DMD insulation paper and T410 Nomex paper. The brand of polyester films is DUPONT. The layers of overlap is depends on the safety agent requirements.
- Primary and Secondary winding wire is polyesterimid enameled, have 130/155/180/200degree for option.
- Primary lead wire from type UL1617 double insulation for 600V voltage and 105 degree or UL3321 XLPE for 600V and 150degree.
- Secondary lead wire from type UL1015 for 600V voltage and 105 degree
- Outer insulation is overlap 1 layer 0.075/0.125mm thickness polyester film or 0.18/0.25mm DMD insulation paper or T410 Nomex paper.
EI Transformer Testing Items
- Exciting current & core loss: 100% test
- DC Resistance: 100% test
- Layer insulation: 100% test
- Loading test: 100% test
- Hi-pot test: 100% test, but the time is only approx 10seconds for the production-run.
- Aging test: Spot check, 10% of product quantity
Transformer applications
Widely use in Medical, Industrial Equipment, servo motor, Building, Precision Machine Tool, Elevator Control, Test equipment, Auto Control System, Railway, fire system, Amplifier, UPS, Sola, Lighting, Communications and so on.
